How to Simplify Data and AI Application Architectures

Engineering teams building modern data products and AI applications frequently face architectural sprawl. To answer analytical queries or supply context to language models, teams construct multi-stage pipelines. A typical stack includes Change Data Capture (CDC) connectors, message brokers, stream processing workers, cloud data warehouses, vector databases, and key-value caches.

Each additional system introduces failure modes, schema migration overhead, operational burden, and extra network hops. Data freshness degrades from seconds to minutes or hours. Debugging across five distinct infrastructure services slows development.

Data and AI architecture simplification is the practice of consolidating disparate ingestion, storage, search, and serving components into a co-located data runtime. Instead of moving data across networks, a unified engine runs federated queries and materializes acceleration caches locally. It also generates embeddings within one process boundary.

Why Modern Data and AI Stacks Become Complex

Architectural complexity usually develops incrementally. Teams add single-purpose tools to address individual requirements as applications evolve:

1. Analytical queries over production data. Teams start with a read replica. When ad-hoc queries degrade operational database performance, teams build CDC pipelines using Debezium, Kafka, and data warehouses.
2. Context retrieval for AI agents. Adding LLMs requires grounding models in operational data. Engineers build tool servers, credential brokers, embedding pipelines, and vector database synchronization jobs.
3. Cross-system data access. Joining data from PostgreSQL, Snowflake, and external APIs requires building ELT pipelines or managing staging schemas.
4. Hybrid search capabilities. Combining keyword search with vector search leads teams to deploy both Elasticsearch and a vector database. Application code must then merge two result sets.
5. Low-latency serving. Meeting sub-millisecond API SLAs forces teams to implement cache-aside logic with Redis, background invalidation workers, and pre-warm cron jobs.

Although each tool solves its immediate task, the resulting architecture creates system sprawl. Maintenance shifts from building product features to monitoring pipeline health, handling schema drift, and managing cache invalidation.

The Cost of Multi-System Data Pipelines

Every system boundary in a data pipeline incurs tangible engineering costs:

• Serialization overhead: Translating data between JSON, CSV, protocol buffers, and database row formats consumes CPU cycles at every hop.
• Data staleness: Pipeline schedules and queue processing delays add minutes or hours of lag between source updates and application visibility.
• Schema synchronization drift: Changing a column type in an operational database requires updating schema definitions across ingestion workers, warehouse tables, and application interfaces.
• Operational failure surface: Outages in message brokers, consumer lag in streaming workers, or stale keys in cache clusters disrupt downstream application logic.

Simplifying the stack aims to eliminate intermediate movement without reducing system reliability and performance.

Five Core Architecture Simplification Patterns

Replacing fragmented infrastructure components with a co-located data engine simplifies system design across five common application patterns.

1. Real-Time Analytics Replica

Serving analytical queries directly against production databases risks locking tables and depleting connection pools. The standard solution deploys CDC connectors, Kafka brokers, sink workers, cloud warehouse landing zones, and orchestration engines like Airflow.

A unified data runtime replaces this multi-stage pipeline by tailing the database Write-Ahead Log (WAL) directly via logical replication. The runtime streams change records directly into a local acceleration engine.

This pattern eliminates the CDC cluster, Kafka brokers, warehouse landing zone, and transformation schedulers. Analytical queries execute against the local accelerator instead of consuming production database resources, although snapshotting and CDC still impose replication overhead on the source.

Real-world use case: Financial risk scoring services query live transaction tables without degrading primary payment processing databases.

2. Agent Data Stack

Giving AI agents governed access to operational systems typically requires custom tool servers, credential managers, query guardrails, embedding workers, and vector databases.

Co-locating a unified data runtime alongside the agent application simplifies this architecture. The runtime manages data connectors, policy guardrails, dataset acceleration, and embedding generation inside one process boundary. For multi-source retrieval, teams can connect AI agents to multiple databases and serve real-time analytics for AI agents. The agent communicates with the runtime over a standardized protocol such as the Model Context Protocol (MCP) or SQL.

The agent gets one endpoint and one query interface. Data arrives on a defined refresh schedule, and agent queries read from local storage with low local-network latency.

Real-world use case: Enterprise support agents query live customer records, billing status, and documentation vectors through a single co-located interface.

3. Multi-Source Data Federation

When applications require data across databases, warehouses, and object stores, traditional architectures copy datasets into a central warehouse. Managed ETL connectors handle these sync jobs.

Federated query engines eliminate mandatory data movement by querying sources in place. The query engine pushes projections and filter predicates down to source databases, combining intermediate results in memory.

Applications issue a single SQL statement joining tables across PostgreSQL, Snowflake, and S3. For tables requiring fast response times, developers apply local acceleration on a per-dataset basis rather than copying the entire database.

Real-world use case: E-commerce applications join real-time inventory in PostgreSQL with historical order analytics in Snowflake without running batch sync jobs.

4. Operational Hybrid Search

Combining full-text keyword matching with vector similarity search often requires running separate search clusters and writing custom fusion code inside the application.

A unified runtime integrates keyword indexing, vector search, and embedding generation into the data engine. As data changes arrive via logical replication, the engine generates embeddings and updates text indexes automatically.

The application issues one hybrid search query. The runtime executes vector similarity and BM25 full-text searches, combines result ranks using Reciprocal Rank Fusion (RRF), and returns a single sorted list.

Real-world use case: Technical documentation portals search exact product part numbers and semantic concepts in one query call.

5. Low-Latency Application Serving Tier

To achieve low read latency, application developers frequently construct cache-aside systems using Redis, TTL invalidation sweeps, write-through workers, and read replicas.

Co-locating an accelerated data runtime with the API service removes the need for cache-aside application logic. Freshness settings, retention windows, and cache invalidation policies are declared as dataset configuration.

The data engine tails changes from the source database and maintains the active working set in local memory or columnar files on disk. The API queries data locally over localhost without network calls to external cache clusters.

Real-world use case: High-concurrency user profile services read cached user permissions at sub-millisecond latency without managing Redis key expiry.

Architectural Tradeoffs and Operational Risks of Consolidation

Consolidating data infrastructure reduces system boundaries. However, it introduces operational tradeoffs that teams must evaluate:

Coupled Failure Domains and Blast Radius

In a fragmented architecture, an Elasticsearch cluster outage does not prevent PostgreSQL from serving transactional reads. Consolidating ingestion, federation, vector search, and local acceleration into a single runtime couples these capabilities.

If the runtime experiences a panic, memory exhaustion, or disk failure, all dependent application capabilities fail simultaneously. Operating a unified engine requires strict process isolation, robust health checks, and automatic restart policies.

Resource Contention across Workloads

Running heterogeneous workloads inside one process boundary creates internal resource competition:

• CPU allocation: Heavy vector embedding calculations or large analytical aggregation queries can starve low-latency API read threads.
• Memory pressure: Caching large analytical tables in memory leaves less RAM available for vector indexes and query workspace allocations.
• I/O bandwidth: Disk-intensive columnar scans can saturate local SSD throughput, increasing latency for concurrent point lookups.

To mitigate resource contention, teams must configure explicit thread limits, memory caps, and process priority controls per dataset.

Independent Scaling Constraints

Fragmented microservice architectures scale components independently based on demand. For example, teams can scale a vector database to 50 nodes and an analytical warehouse to 4 nodes.

A co-located sidecar runtime scales linearly with application pod replicas. When an application scales out to handle web traffic, every pod receives a full instance of the sidecar runtime. This increases total cluster resource utilization. For large-scale deployments, teams must evaluate whether sidecar co-location or a centralized cluster runtime offers better cost efficiency.

Migration Effort and Team Ownership Boundaries

Replacing established data pipelines requires operational changes across engineering teams:

• Organizational boundaries: Data engineering teams managing Kafka and Snowflake pipelines must coordinate with platform teams operating application sidecars.
• Legacy pipeline migration: Existing dbt models, Airflow DAGs, and custom ETL scripts cannot always be replaced immediately.
• Tooling compatibility: Teams must verify that existing monitoring, alerting, and security scanners support co-located runtime binaries.

Adopting a simplified architecture works best as a phased transition rather than a sudden rewrite.

Comparison: Fragmented Multi-System Stack vs. Unified Data Runtime

Implementation Strategy and Migration Framework

Adopting a unified data architecture requires a structured migration plan to minimize operational risk:

Step 1: Identify High-Friction Data Paths

Audit existing infrastructure for pipeline failure points. Candidate workloads for initial simplification include:

• Cache-aside Redis tiers with frequent invalidation bugs.
• Custom sync scripts copying database tables into vector stores.
• Heavy analytical queries hitting primary production replicas.

Step 2: Deploy Read-Only Sidecar Acceleration

Deploy the data runtime as a sidecar container alongside a single non-critical microservice. Configure read-only acceleration for a subset of required tables. Validate query performance, memory consumption, and CDC synchronization lag under production traffic.

Step 3: Unify Search and Protocol Endpoints

Expand the sidecar configuration to handle vector search and MCP tool routing for AI agents. Consolidate keyword search and vector retrieval into single hybrid SQL queries, eliminating application-side merging logic.

Step 4: Establish Resource Boundaries and Observability

Configure memory limits, query timeout guardrails, and CPU thread pools for the co-located runtime. Instrument metrics for query p95 latency, WAL replication lag, and memory pressure to monitor resource contention before rolling out sitewide.

Advanced Topics

Declarative Dataset Refresh Strategies

Simplifying data architecture requires replacing custom pipeline code with declarative dataset management. A unified data runtime supports three distinct refresh patterns for source systems:

• Changes (Log-Based CDC): Tail transaction logs using native logical replication protocol. The engine applies row inserts, updates, and deletes to the local acceleration table continuously. This pattern maintains sub-second freshness with minimal source database overhead.
• Append: Poll source tables for new records based on incrementing keys or timestamps (such as created_at or event IDs). The engine appends new rows to local storage without re-scanning historical data.
• Full Refresh: Periodically re-query the full source dataset and swap the local accelerated view atomically. This pattern works well for small dimensions, reference tables, or SaaS API endpoints without change tracking.

Choosing the appropriate refresh mode per dataset allows developers to balance data freshness against source system resource limits.

Memory-Mapped Columnar Storage and Zero-Copy Passing

High-performance data runtimes rely on standardized columnar formats to eliminate serialization costs between application processes and local storage.

By standardizing on Apache Arrow for in-memory representations, a data runtime shares memory buffers directly with application code. When querying a co-located engine over Arrow Flight SQL or IPC, results stream in Arrow columnar format without row-by-row serialization. Shared memory buffers or IPC sockets eliminate JSON parsing overhead.

For larger datasets that exceed physical RAM limits, runtimes can use memory-mapped columnar disk files such as Vortex. The OS page cache loads and evicts pages on demand, which reduces memory pressure when scanning datasets larger than RAM.

Unifying SQL and Protocol Interfaces for AI Agents

AI agents require diverse data interactions. They need SQL for analytics, vector search for text, and protocols for tools. A unified engine handles all three tasks:

Exposing MCP endpoints enables AI models to discover datasets, execute tools, and perform vector search through one gateway.

Simplifying Data and AI Architectures with Spice

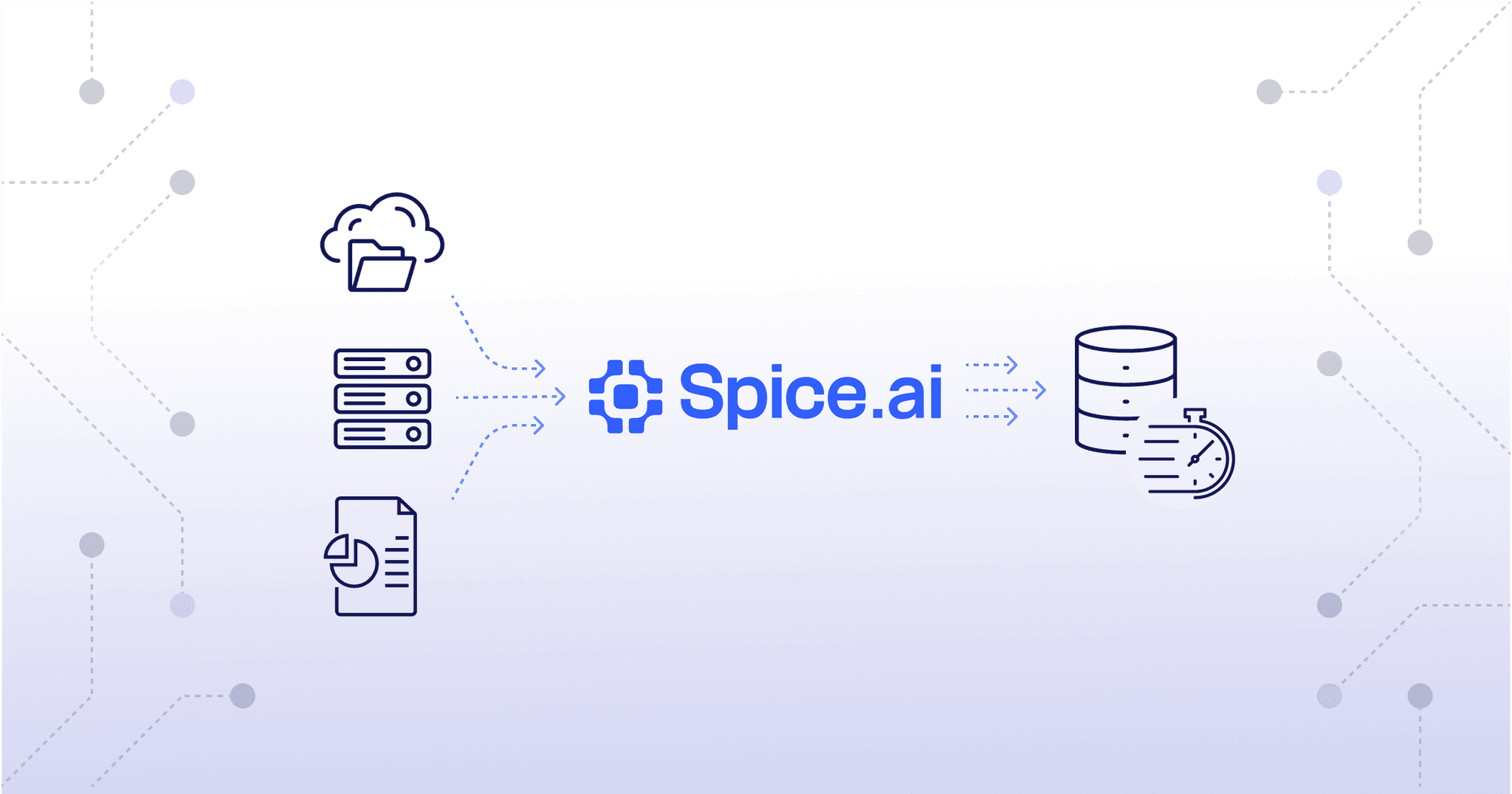

Spice is an open-source, Rust-based data and AI runtime designed to simplify complex data architectures. Spice co-locates alongside applications or deploys as a dedicated cluster. It combines query federation, dataset acceleration, logical CDC, and AI interfaces into one binary.

Key capabilities for architecture simplification include:

• Federated SQL Execution: Query across PostgreSQL, Snowflake, Iceberg, S3, and SaaS APIs in one SQL dialect. Powered by Apache DataFusion. Explore all supported connectors on the Spice integrations page.
• In-Memory and Disk Acceleration: Materialize datasets locally using Arrow, DuckDB, or SQLite, or compressed columnar files via the Cayenne engine powered by Vortex.
• Native CDC and WAL Tailing: Stream database changes directly into local acceleration tables using logical replication for PostgreSQL and binlog CDC for MySQL.
• Integrated Hybrid Search: Combine BM25 full-text search with vector similarity search using hybrid SQL search fused with Reciprocal Rank Fusion (RRF).
• Built-in MCP Gateway: Expose accelerated datasets and vector search to LLM agents through a native MCP server gateway for RAG applications.

By running Spice as a sidecar pattern container or co-located process, development teams eliminate separate CDC connectors, message queues, vector databases, and cache-aside code. For more on replacing complex ingestion pipelines with direct acceleration, read about zero-ETL architectures and caching vs data acceleration.
